| Product Attribute | Attribute Value |
|---|---|
| Agency Approvals | cULus |
| Alternate Mfr Part Number | FLKM 50 |
| Color | Green |
| Current Rating | 1 A |
| Family Name | VARIOFACE VIP Series |
| Height | 2.303" (58.5mm) |
| Length | 3.031" (77mm) |
| Mounting Type | DIN Rail |
| Number of Positions | 50 Poles |
| Operating Temperature | -20 to 50 °C |
| Primary Type | Interface Module |
| Series | |
| Stripping Length | 8 mm |
| Termination | Screws |
| Type | Ribbon Cable |
| UPC Code | 4017918054533 |
| Voltage Rating | 60 VAC/VDC |
| Width | 5.315" (135.0mm) |
| Wire Size | 24-12 |
Overview

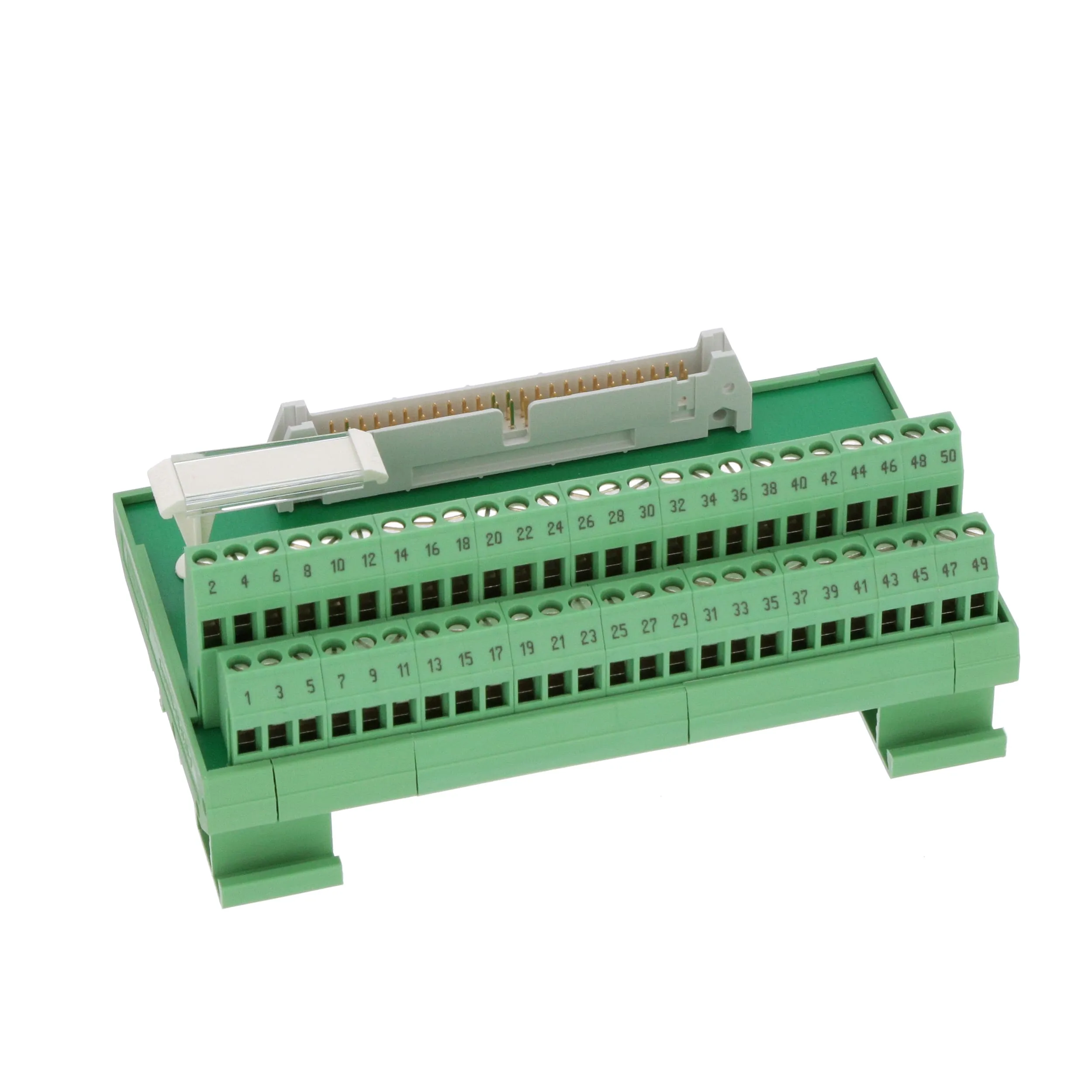

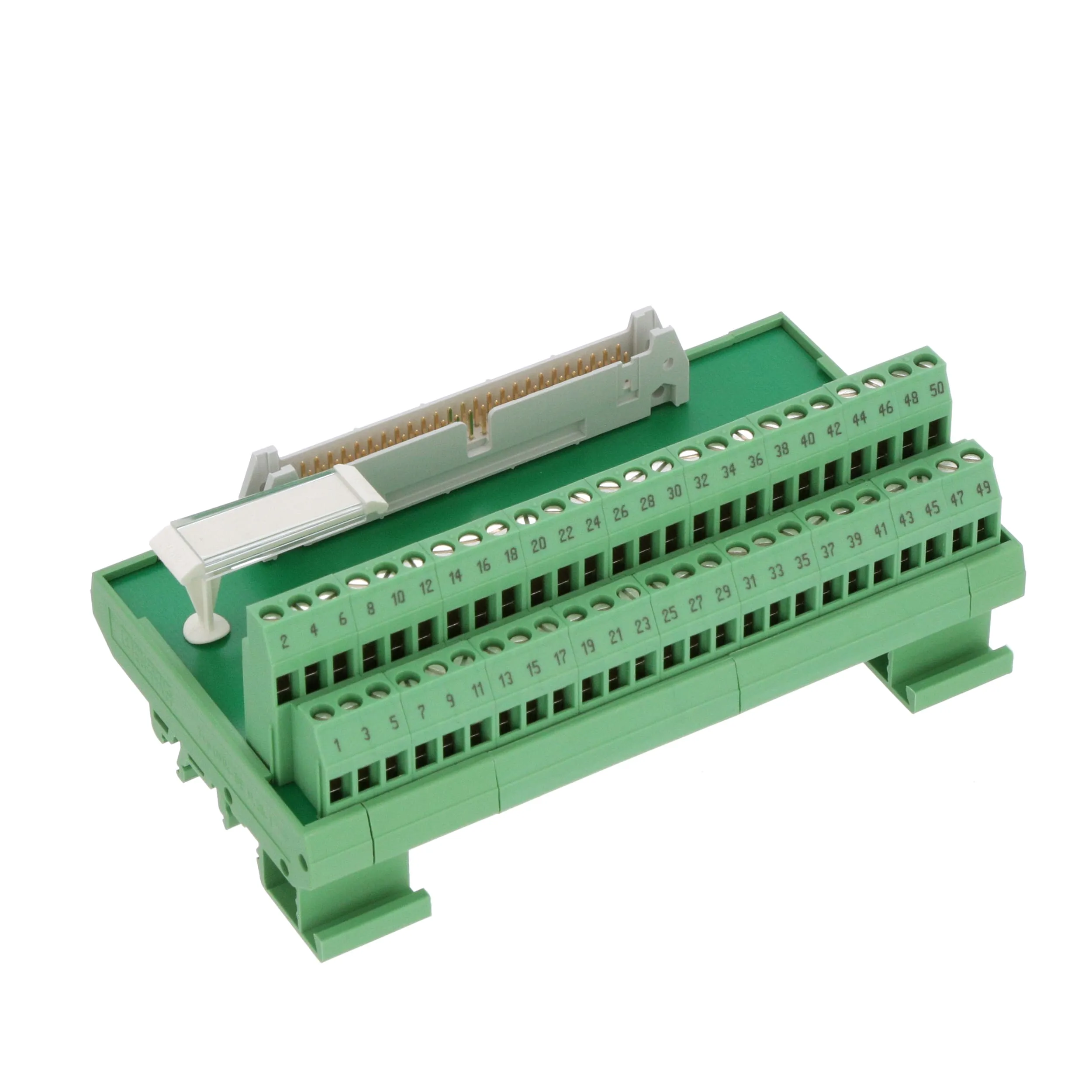

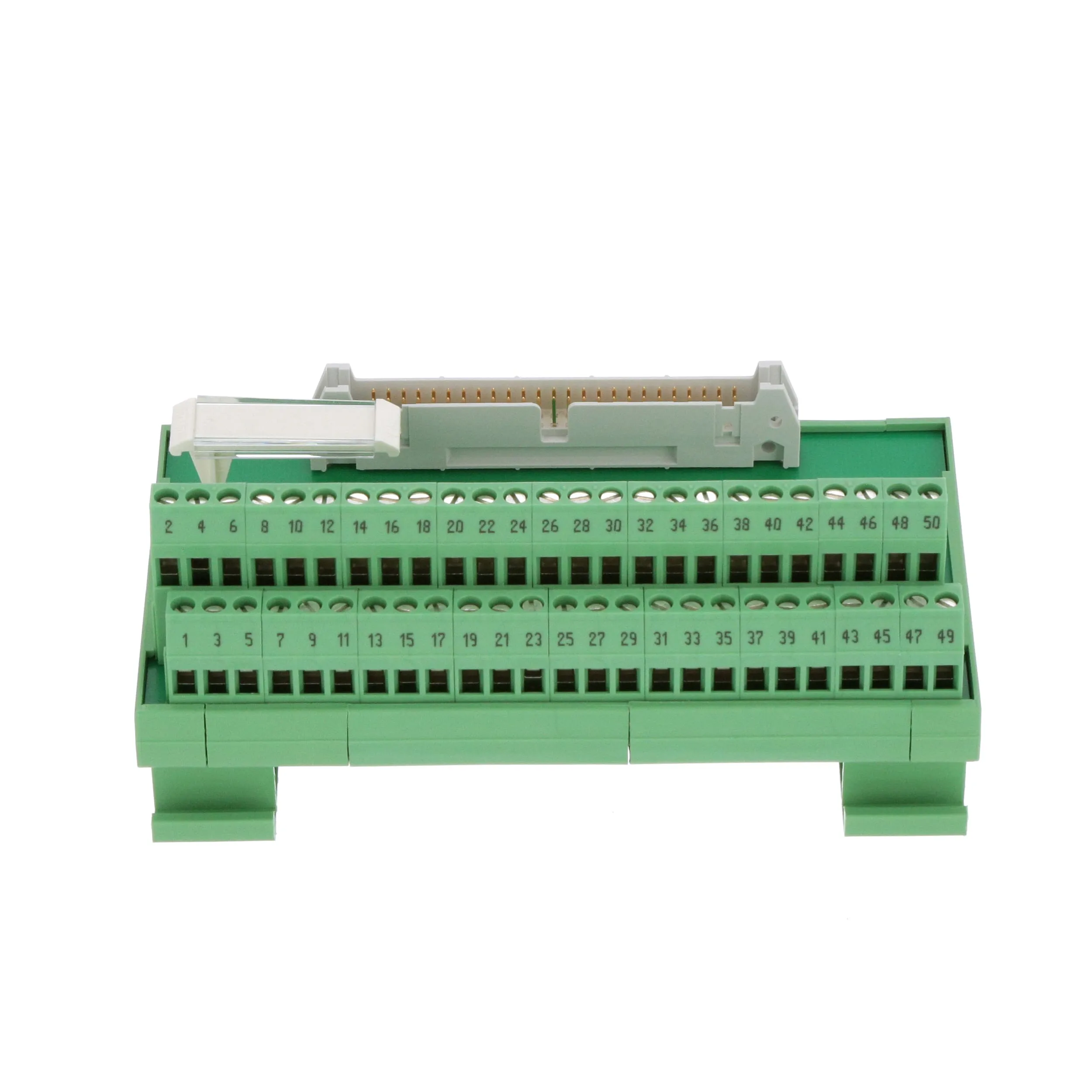

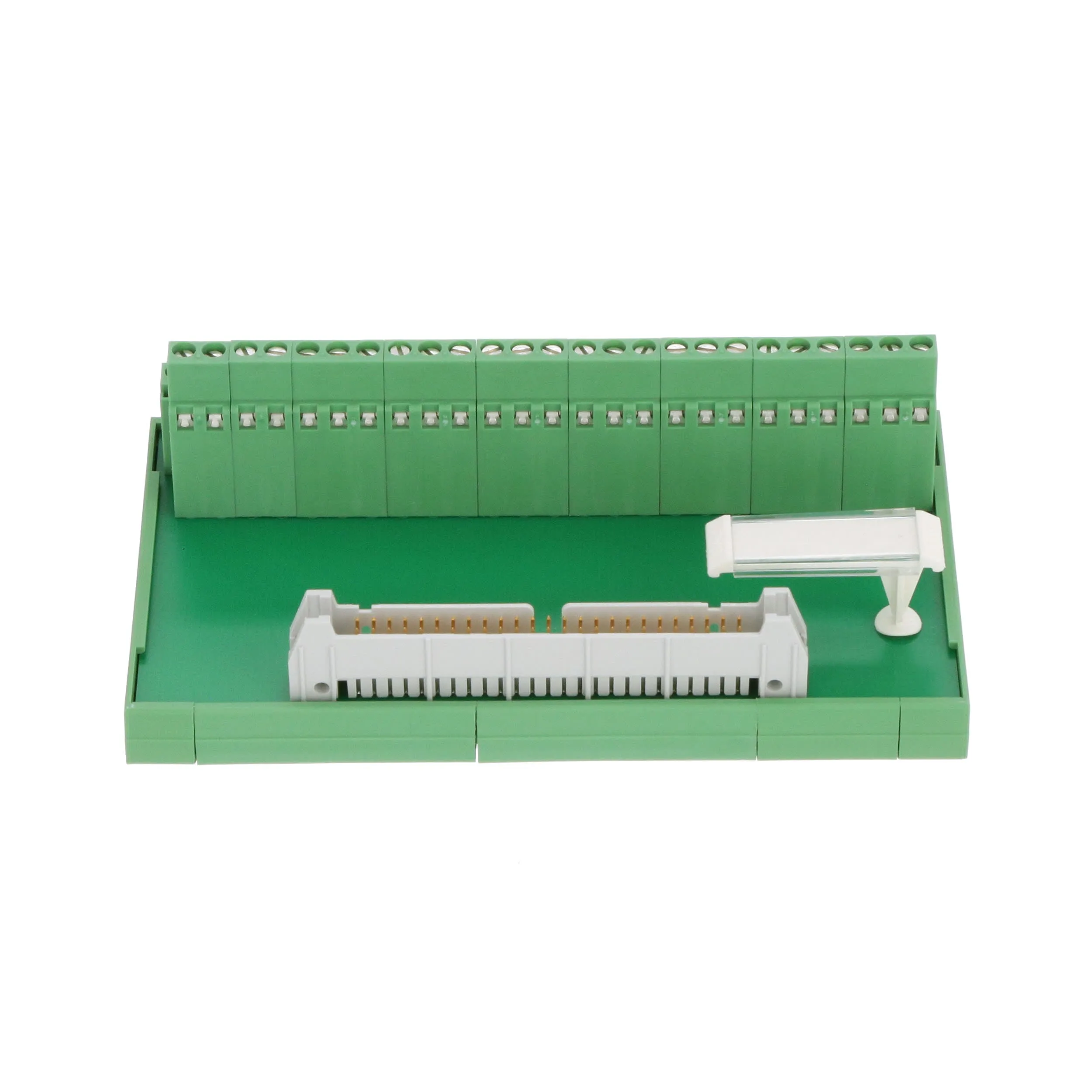

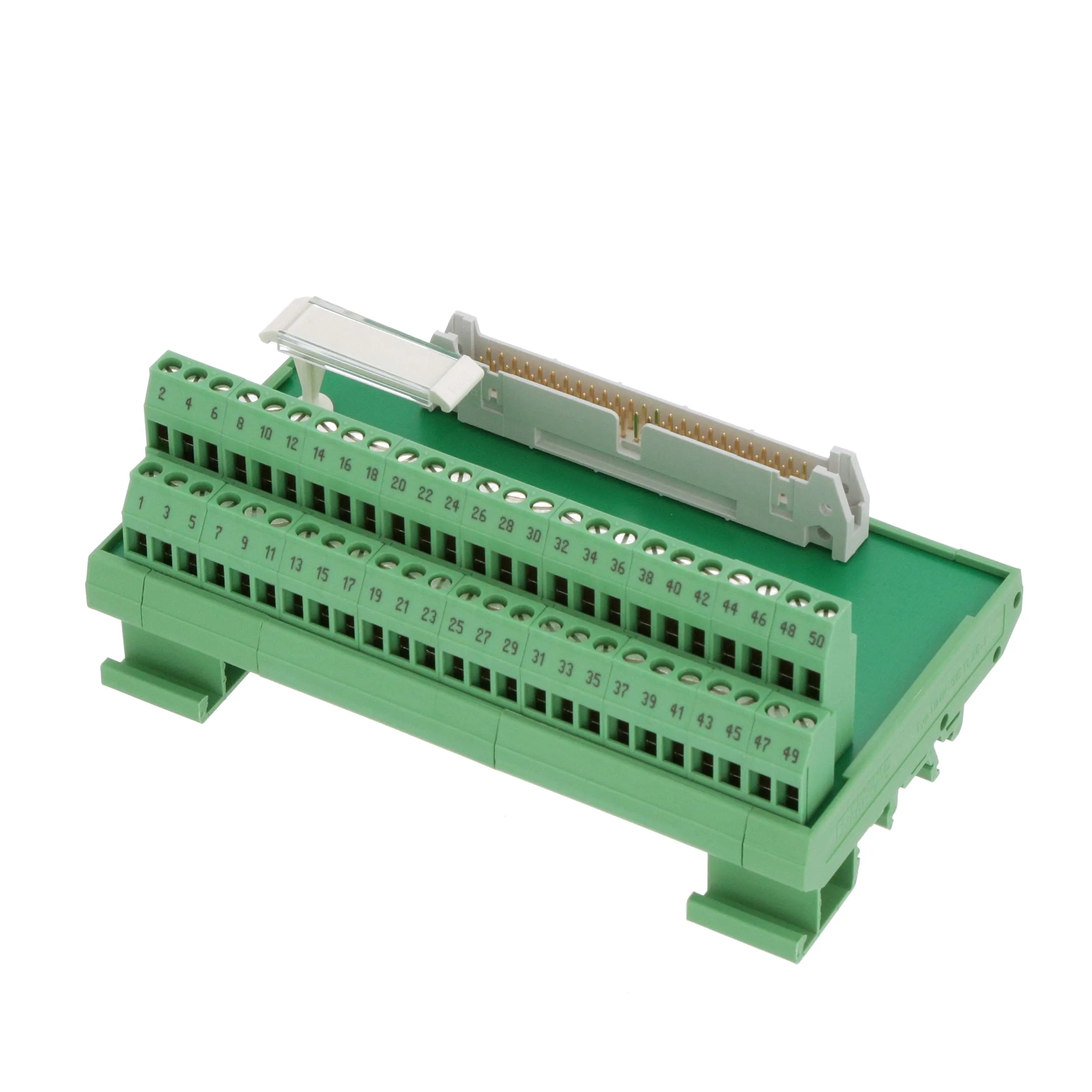

Phoenix Contact VARIOFACE Series Modules | FLK, FLKM, FLKMS – Professional Fast and Faultless Wiring:
VARIOFACE modules act as standard interfaces for the switch cabinet to connect the multiposition computer I/O modules to ribbon cable connections acc. to IEC 603-1/ DIN 41 651 via standard field cables up to 2.5 mm2. VARIOFACE modules are therefore an indispensable wiring interface for modern machine and plant equipment. The modules have a universal foot and are simply snapped onto the EN mounting rails as a compact terminal strip.
Space is extremely valuable in the control cabinet. That is why the I/O of automation devices feature high-position plug-in connectors. To enable the single wires of the sensor/actuator level to be connected to the automation interface quickly and in accordance with industry requirements, Phoenix Contact offers VARIOFACE Professional module with push-in or screw connection. Particularly the tool-free connection of the push-in terminal blocks saves a lot of time in single core wiring. Thanks to the large variety of system cables, the control and process levels can be connected safely and also error-free in harsh industrial environments. To allow all components to be supplied with power, potential distributors are available with the same housing design.
Features:
Three Versions Available:
– the standard FLKM modules are wiring interfaces with 10 to 64-position pin strips,
– the very narrow FLKMS modules with 10 to 64- position pin strips and 3-level screw connection terminal blocks for conductor cross sections up to 2.5 mm2
– the FLKM…/LA modules with 10 to 64-position pin strips and an additional LED per signal path which indicates the signal status.
