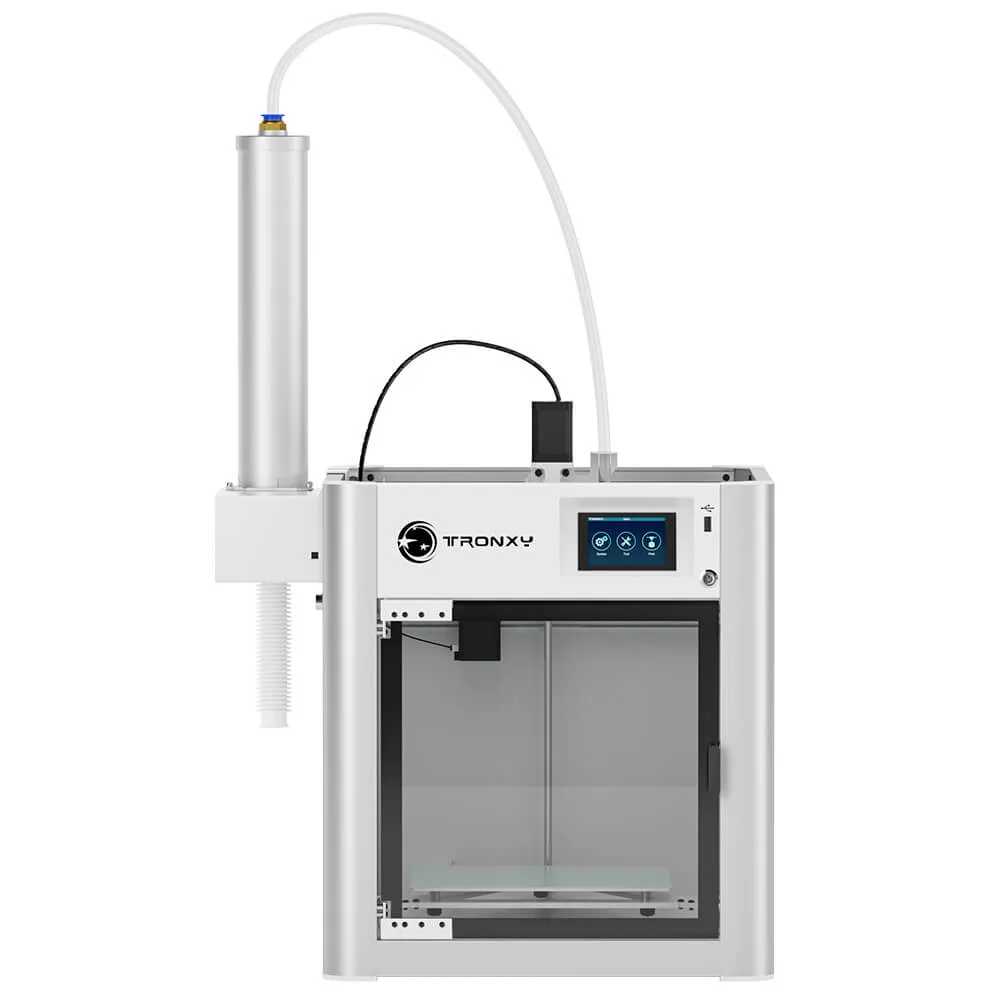

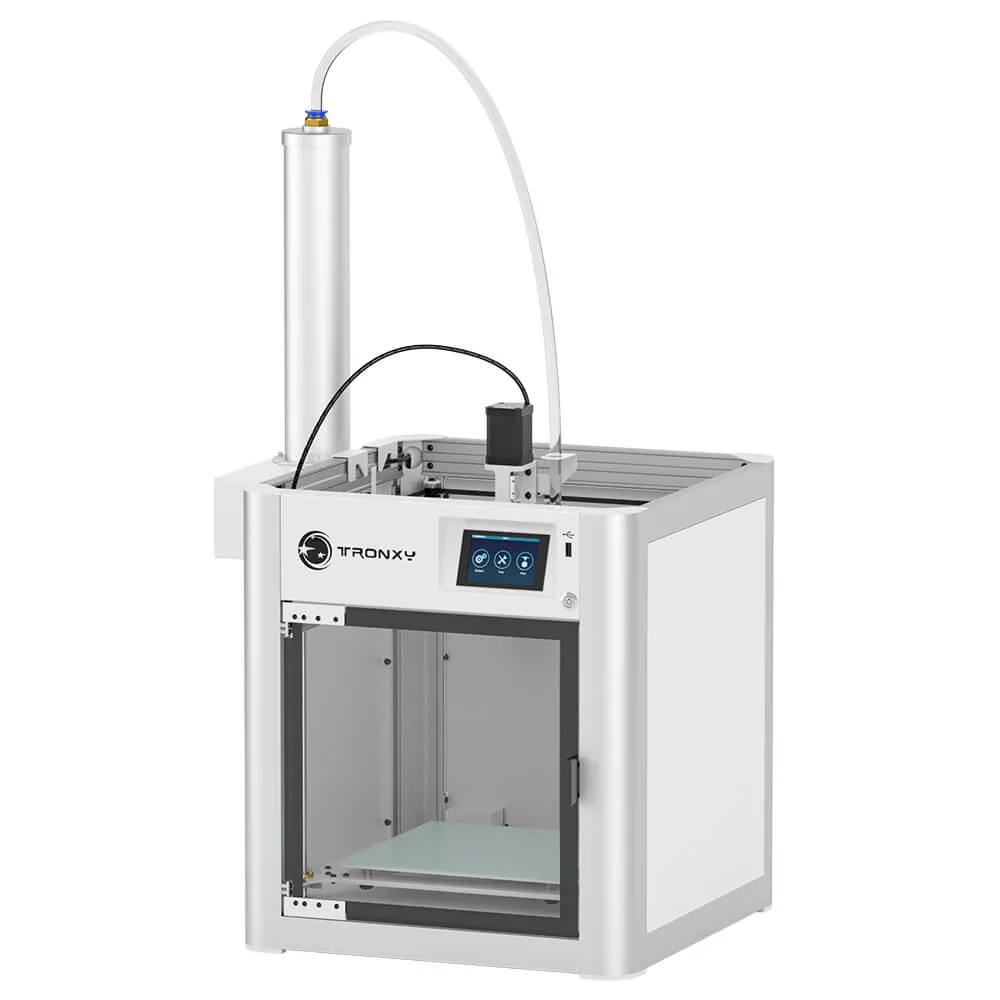

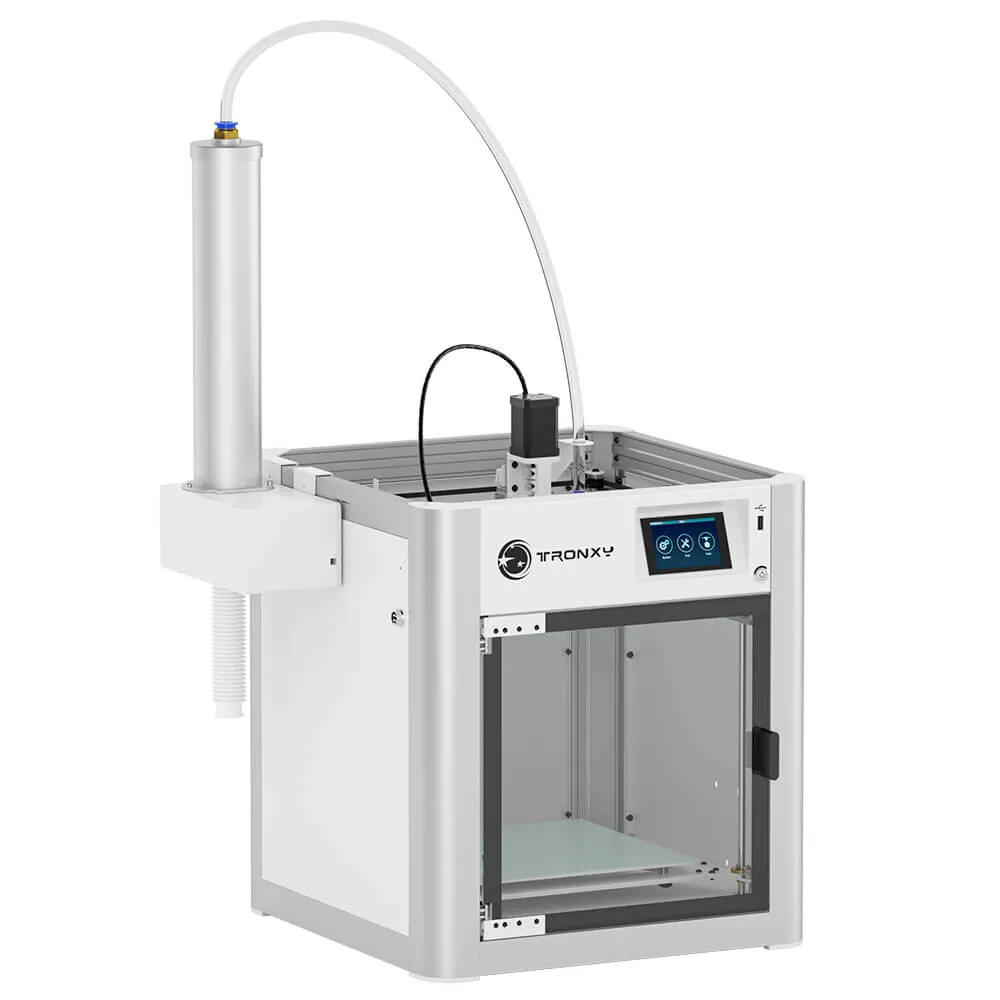

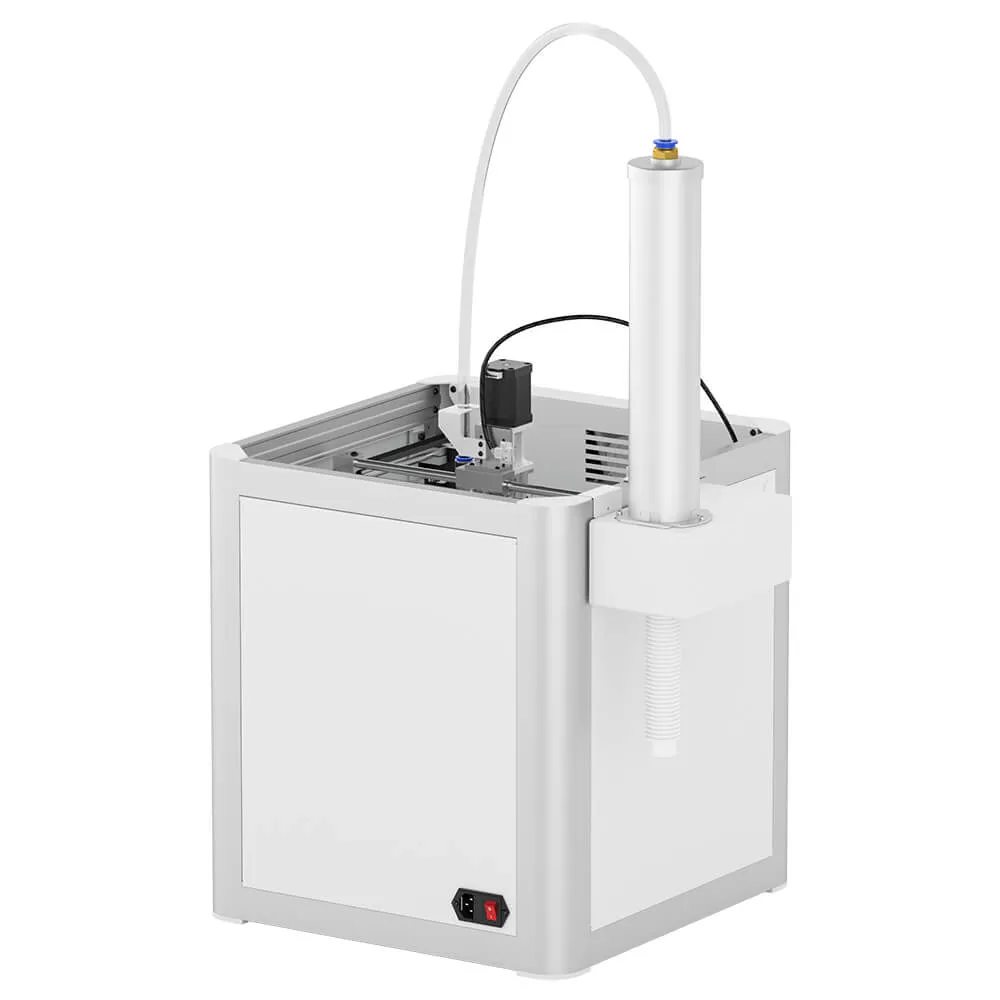

Name: Tronxy Moore X Clay 3D Printer with Enclosure Print Size 255x255x255
SKU: 287249

Product Details ＋

Conveniently Delivered Fully Assembled

The Tronxy Moore X Clay 3D Printer arrives fully assembled, enabling you to begin printing immediately upon unboxing. This avoids the inconvenience of having to put it together, appealing to both novices and seasoned users looking to streamline their tasks.

Printing Capabilities are Adaptable and Varied

Crafted for various materials such as clay, ceramics, and liquid substances that flow, this printer provides unparalleled versatility. No matter if you are working on delicate pottery or crafting one-of-a-kind art pieces, the Moore X is effortlessly up to the task.

Printing at High Speed

Witness the swift process of rapid prototyping at a top speed of 150mm/s. The Tronxy Moore X offers efficient production while maintaining top quality, making it perfect for a wide range of projects, whether big or small.

Cutting-edge Feeding Method

This printer ensures a seamless and steady flow of materials with its aluminum barrel feeding system and air compressor. This novel design reduces blockages and makes cleaning easier.

Durable and Reliable Design

The printer is equipped with a sturdy new design and double-axis guide rail to guarantee stability while in use. This particular design elevates accuracy and dependability, ensuring top-notch prints on every occasion.

Intuitive and Easy-to-navigate Interface for Users

The Tronxy Moore X is thoughtfully designed to offer convenience through its USB connection and compatibility with various languages. Just pop in a USB drive to print effortlessly, providing accessibility for users of various expertise levels.

Tronxy Moore X Clay 3D Printer Fully Assembled 3D Printer Ceramic Printing Aluminum Barrel Feeding System High-speed Printing 3D Printing Technology Electric Putter

Tronxy Moore X Ceramic 3D Printer

Suitable for various types of clay

Multiple sizes of models to choose from

Supporting air compressors and screw feeding devices

Efficient Production Of Ceramic Models

High Speed Printing

Stable Structure

Double Axis Guide Rail

USB Connection

Recyclable Environmentally Friendly Consumables

Suitable for Various Types of Clay

Easy to Clean without Plug

Configuring Lights

Rapid Prototyping And High-speed Printing

The maximum printing speed can be set to 150mm/s, and the layer thickness can be set to 0.3-3mm.

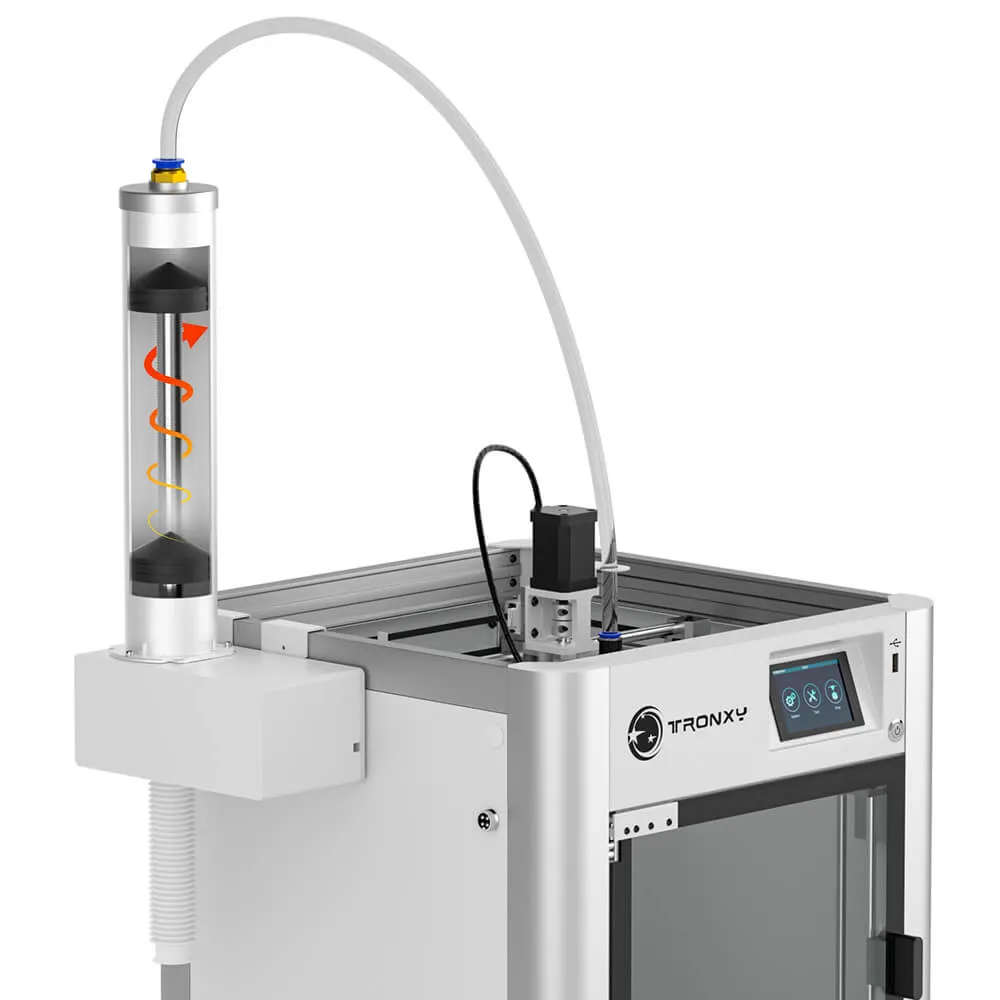

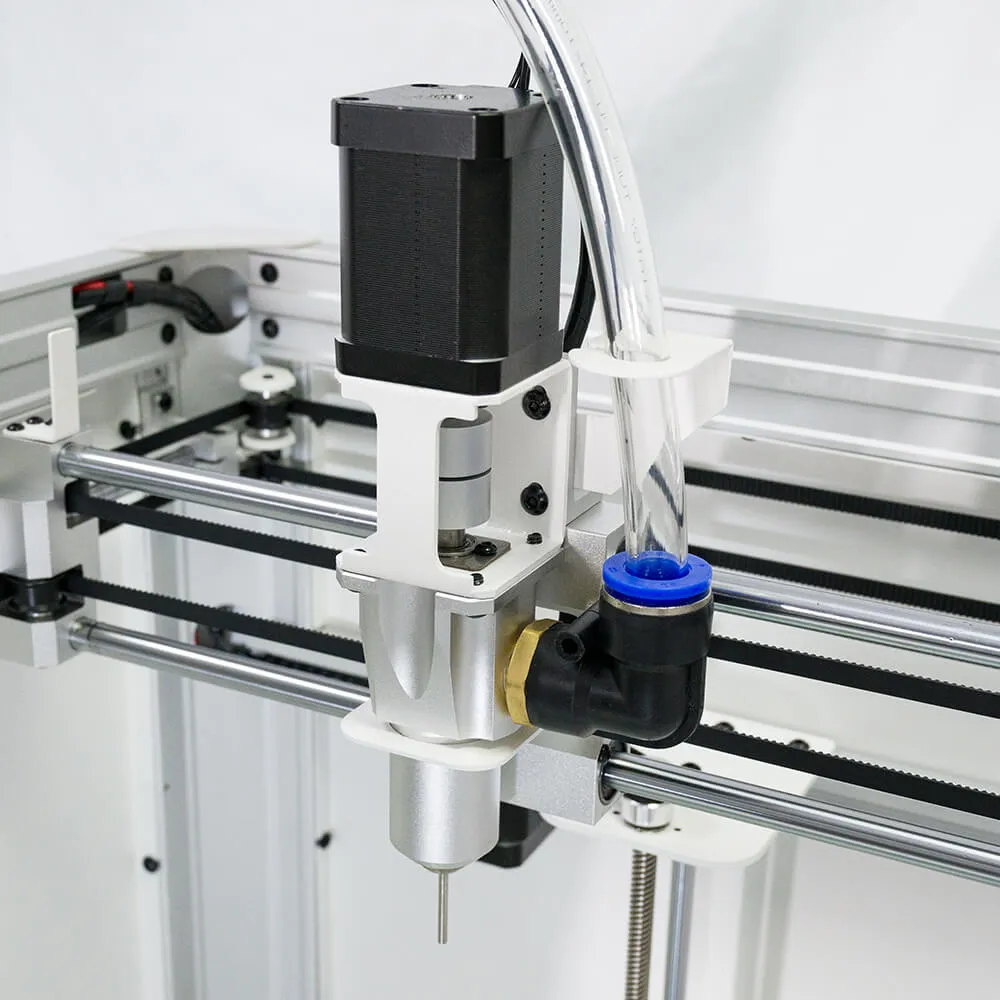

Spiral Feeding Device

No need for an air compressor, making printing lightweight and simple.

Accurate And Efficient Printing

Innovative Core XY structure, printing speed 10-150mm/s, speed up to 300mm/s, achieving high-speed and efficient printing.

USB Connection Insert a USB Drive to Print Directly

Moore X Size Parameters

Printer Size (mm): 497.5x497.5x660

Print Size (mm): 255x255x255

Not Afraid Of Power Outage

We support power outage resumption and pause resumption to address your concerns.

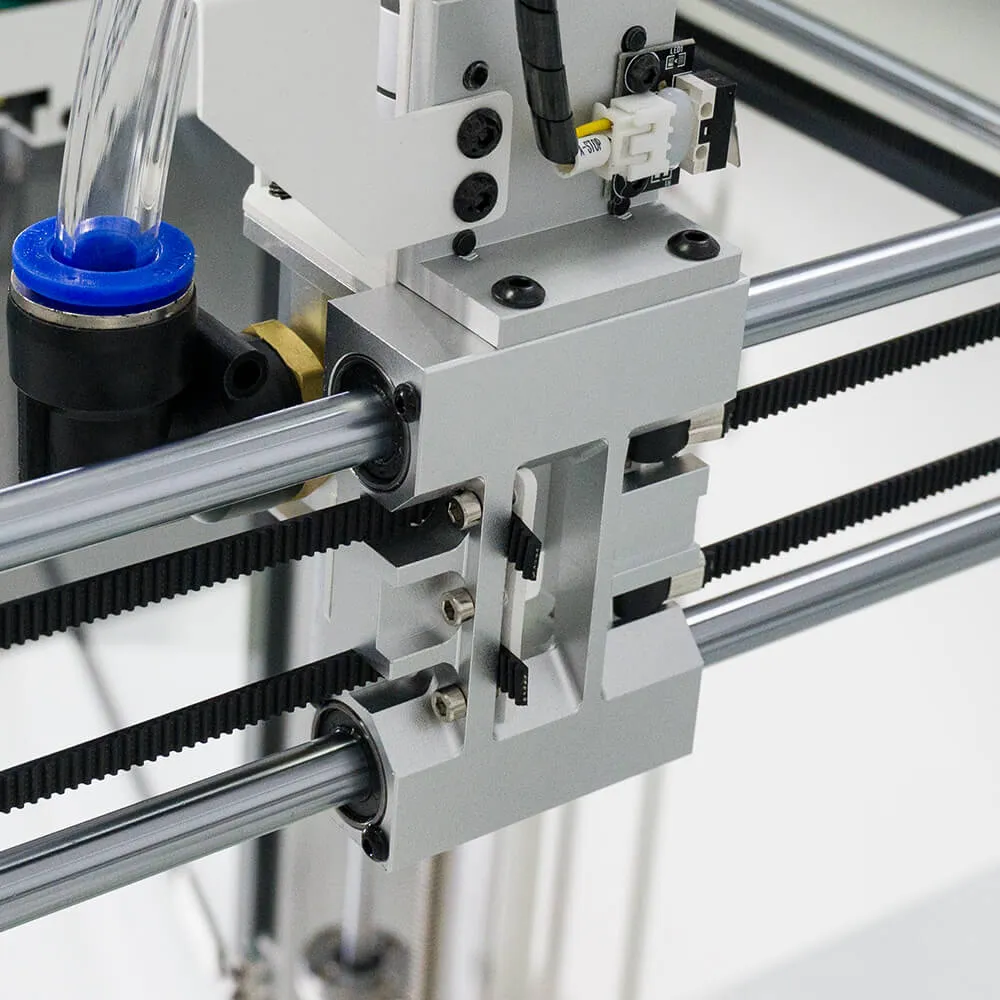

Smoother Metal Guide Rails

The XY axis uses a metal optical axis guide rail, which runs smoothly and stably during rapid movement, and is sturdy and durable.

Watch More

Application Of Ceramic 3D Printing

New products developed by enterprises and research institutes.

Channel cooperation and social experience.

Innovation Education for Makers in Primary and Secondary Schools.

Practical Training Space in Vocational Colleges and Universities.

Moore X Clay Series 3D Printer Parameters

Moore X Clay Series 3D Printer Parameters
(scroll to view all)

Moore Model	X2525	X2540	X3350	X4060	X5070	X6080
Printing Principles	Liquid Deposition Molding	Liquid Deposition Molding	Liquid Deposition Molding	Liquid Deposition Molding	Liquid Deposition Molding	Liquid Deposition Molding
Print Size (mm)	255x255x255	255x255x400	330x330x500	400x400x600	500x500x700	600x600x800
Print Accuracy	0.3-3.0mm	0.3-3.0mm	0.3-3.0mm	0.3-3.0mm	0.3-3.0mm	0.3-3.0mm
Number of Nozzles	1	1	1	1	1	1
Positioning Accuracy	x/y: s0.00625mm; z: s0.00125mm	x/y: s0.00625mm; z: s0.00125mm	x/y: s0.00625mm; z: s0.00125mm	x/y: s0.00625mm; z: s0.00125mm	x/y: s0.00625mm; z: s0.00125mm	x/y: s0.00625mm; z: s0.00125mm
Nozzle Diameter	1.0-3.0mm (optional)	1.0-3.0mm (optional)	1.0-3.0mm (optional)	1.0-3.0mm (optional)	1.0-3.0mm (optional)	1.0-3.0mm (optional)
Barrel Capacity	0.5L	0.5L	0.5L	5L	5L	5L
Consumables	Pottery Clay, Porcelain Clay, Purple Clay, etc	Pottery Clay, Porcelain Clay, Purple Clay, etc	Pottery Clay, Porcelain Clay, Purple Clay, etc	Pottery Clay, Porcelain Clay, Purple Clay, etc	Pottery Clay, Porcelain Clay, Purple Clay, etc	Pottery Clay, Porcelain Clay, Purple Clay, etc
Printing Speed	10-150mm/s	10-150mm/s	10-150mm/s	10-150mm/s	10-150mm/s	10-150mm/s
Movement Speed	300mm/s	300mm/s	300mm/s	300mm/s	300mm/s	300mm/s
Equipment Material	Aluminum Profiles, Sheet Metal	Aluminum Profiles, Sheet Metal	Aluminum Profiles, Sheet Metal	Aluminum Profiles, Sheet Metal	Aluminum Profiles, Sheet Metal	Aluminum Profiles, Sheet Metal
Device Size (mm)	497.5x497.5x660	497.5x497.5x805	572.5x572.5x1243	642.5x642.5x2220	742.5x742.5x2303	851.0x854.7x2416
Screen	3.5 inch Resistance	3.5 inch Resistance	3.5 inch Resistance	7 inch Capacitive	7 inch Capacitive	7 inch Capacitive
Platform Material	Tempered Glass	Tempered Glass	Tempered Glass	Tempered Glass	Tempered Glass	Tempered Glass
Screw Rod	Ball Screw	Ball Screw	Ball Screw	Ball Screw	Ball Screw	Ball Screw
Machine Internal Temperature Control	Constant Temperature	Constant Temperature	Constant Temperature	Constant Temperature	Constant Temperature	Constant Temperature
Machine Sealing Method	Fully Enclosed	Fully Enclosed	Fully Enclosed	Fully Enclosed	Fully Enclosed	Fully Enclosed
Input	115-230V 50/60HZ	115-230V 50/60HZ	115-230V 50/60HZ	115-230V 50/60HZ	115-230V 50/60HZ	115-230V 50/60HZ
Output	24V/4A DC	24V/4A DC	24V/4A DC	24V/4A DC	24V/4A DC	24V/4A DC
Ambient Temperature	8°C~40°C	8°C~40°C	8°C~40°C	8°C~40°C	8°C~40°C	8°C~40°C
Environmental Humidity	20%-80%	20%-80%	20%-80%	20%-80%	20%-80%	20%-80%
File Format	Stl obj dae amf g-code	Stl obj dae amf g-code	Stl obj dae amf g-code	Stl obj dae amf g-code	Stl obj dae amf g-code	Stl obj dae amf g-code
Slicing Software	Cura	Cura	Cura	Cura	Cura	Cura
Operating Software	Repeater Host Cura	Repeater Host Cura	Repeater Host Cura	Repeater Host Cura	Repeater Host Cura	Repeater Host Cura
Operating System	Windows	Windows	Windows	Windows	Windows	Windows
Link	USB Interface	USB Interface	USB Interface	USB Interface	USB Interface	USB Interface

More about Moore X

Q: What is the Tronxy Moore X Clay 3D Printer?
A: The Tronxy Moore X Clay 3D Printer is a fully assembled printer designed for creating ceramic models. It features an aluminum barrel feeding system and can print with various materials like clay and ceramics. The printing size is 255mm x 255mm x 255mm, making it suitable for medium-sized projects.
Q: How does the feeding system work?
A: This printer uses an air compressor for its feeding system, which helps in pushing the clay or ceramic material through the nozzle. This system ensures a smooth and consistent flow, allowing for high-quality prints without clogging.
Q: What materials can I use with this printer?
A: You can use a variety of materials with the Tronxy Moore X, including clay, ceramics slurry, and red porcelain. This versatility allows you to create different types of ceramic art and pottery.
Q: Is the printer easy to clean?
A: Yes, the Tronxy Moore X is designed for easy cleaning. The new printer head prevents clogging, and the components can be easily accessed for maintenance, making it user-friendly for both beginners and experienced users.
Q: What is the maximum printing speed?
A: The maximum printing speed of the Tronxy Moore X is adjustable, reaching up to 150mm/s. This allows for rapid production of ceramic models, making it efficient for both hobbyists and professionals.
Q: Can I connect the printer to my computer?
A: Yes, the Tronxy Moore X features a USB connection, allowing you to easily connect it to your computer. You can upload your designs directly to the printer for a seamless printing experience.
Q: What happens if there is a power outage?
A: The printer supports power outage resumption
