Product Details ＋

COLLECTION DIAMOND

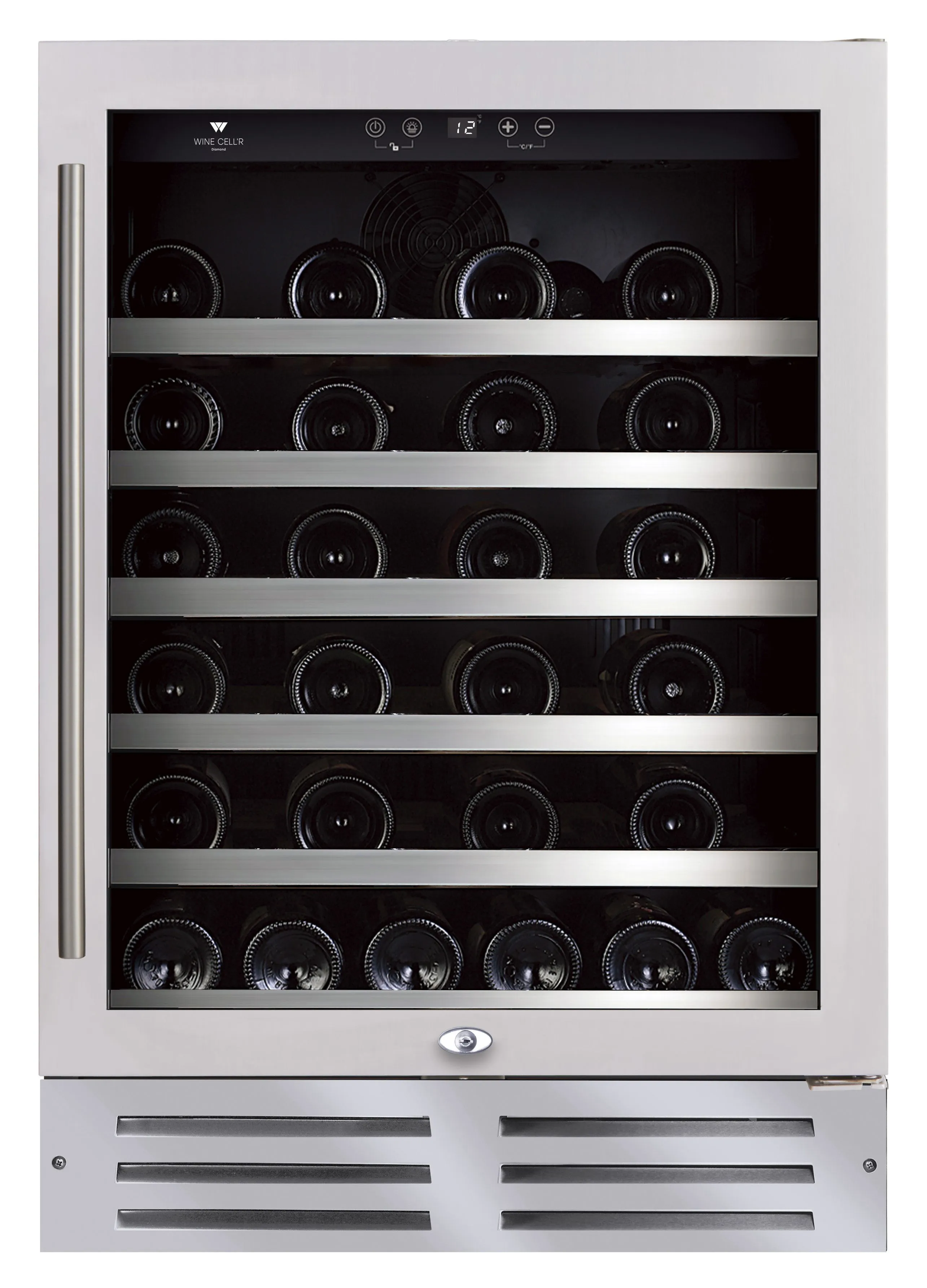

This built-in cellar with a finished stainless steel frame can hold up to 46 bottles*. With its dual zone and compressor, one of the quietest on the market, it is the ideal service cellar. His 5 sliding shelves on ball bearings allow you to see all your bottles. WC46SSTSZ6 is now equipped with lateral LED strips and a door alarm.

Technical Sheet:

46 Bottle Capacity (750mL)
Seamless Stainless Steel Glass Door
Single Temperature Zone
Reversible Door
Door Alarm
Lateral LED strips with 5 intensities, 100_, 75_, 50_, 25_ and 0_
34 1/8 " H x 23 1/2" W x 22 1/2"

Wine CellR Cabinets

Great for catering professionals or the new wine connoisseur, Wine CellR built-in or free-standing wine cabinets are practical, cost effective cabinets.

Features on most cabinets unless indicated otherwise:

Built in or Free standing climate controlled cooler.
Digital Temperature Display C° / F°
Black finish on sides of cabinet
Interior LED light
Tempered double pane glass door, stainless steel trim
Most cabinets have reversible doors unless specifically indicated per cabinet.
Min 5 ° C - max 22 ° C on most single zone cabinets with Dual Zone max of 19 °C
Security Lock
Charcoal Filter in most units (Eg. not in the 18 BK)
115V / 60HZ
Cooler: R134a
UL/CSA ETL Approved

HINGE ORIENTATION - Most models are being changed to a reversible door. Standard hinge will be on the right when looking at the front of the cabinet. The door swing can easily be changed on site to left hinge. Should you wish Rosehill to change the hinge orientation prior to delivery, there will be a $50 charge.

The enclosure cut out needs only to be slightly larger than the dimensions of the cabinet to slide into space if being built in. Please note, the Wine Cell"R wine cabinets are NOT designed to sit flush with surrounding cabinetry. The door has to remain outside the enclosure to allow opening. (It’s not a zero clearance hinge – you need about ½” or so to allow the door to open.

***** Warranty *****

2 year warranty parts & labor (on most models)
3 years on compressor

Wine CellR Cabinet Specification Sheets:

If your Wine CellR is equipped with the Silent Mode – Please see .

Wine CellR Instruction Manuals

If you can’t change the temperature on your Wine CellR cabinet, you may have “locked” the cabinet by holding down on the temperature adjustment buttons for too long. To unlock the controls you need to hold and press the '' - '' minus button for 3-5 seconds until your temperature number changes to a letter. This letter has to be '' E ''. If not, change it to that letter by pressing either the plus or minus button until it shows E. Then wait until it goes back to the current temperature display. You can now unlock the panel by pressing the padlock button and then set it to your desired temperature. After a few minutes it will cool it down to what you set it to.
